MKVI Master Chief - Build Details

1 5

Design Stages

  • Research and reference

    • Collected high‑resolution game captures, concept art, and community reference for the Halo 2 MKVI armor, focusing on proportions, layering, and silhouette. This version takes elements from all 3 games, and molds it into one.
    • Pulled in 3D scans and existing measurements where available to lock in dimensional accuracy before modeling any hard surfaces.

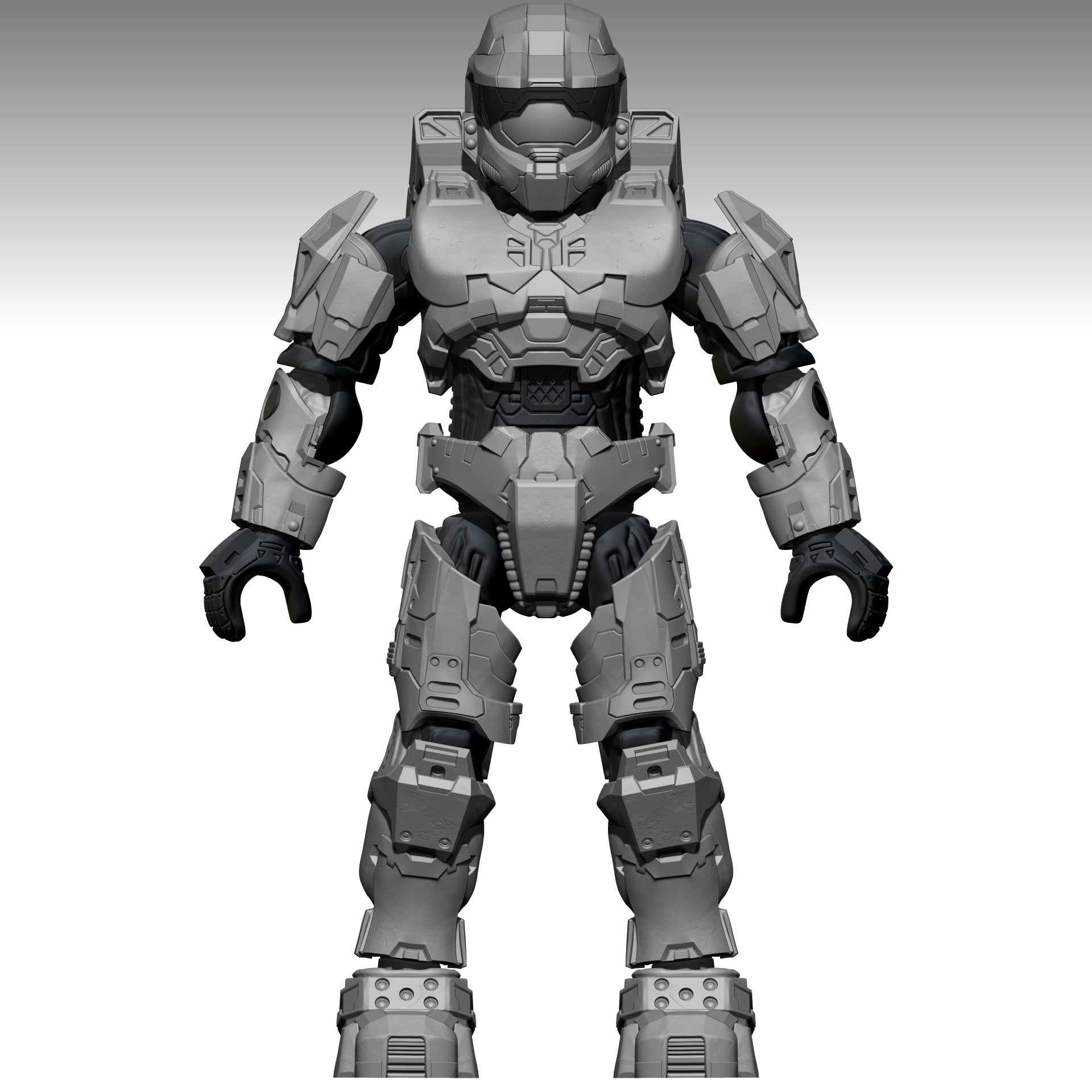

  • Base modeling and block‑out

    • Started with a low‑resolution block‑out of each armor plate to establish scale, fit, and range of motion on the base body.
    • Used ZBrush and hard‑surface workflows to refine the primary forms, making sure major panels, bevels, and thicknesses felt believable and printable at small scale.

  • Zbrush tools used

    The base mesh is sculpted and refined using the new retopology brush and ZModeler. Hand‑sculpted details are then added, including panel lines created with the Chisel brushes and surface texture applied using custom alphas on the armor.

Post Design Stages

  • Step 1: Details & Support

    This stage focuses on capturing all the fine armor details cleanly while keeping support structures under control. The goal is sharp features, no warping or failed prints, and almost no visible support marks once the parts come off the build plate.

  • Step 2: Assembly and Tolerance

    In this stage I tune the scale and tolerances so every piece of the MKVI locks together the way it was designed. Joints, pegs, and seams are adjusted until parts slide together smoothly, hold firmly, and line up without gaps or stress.

  • Step 3: Durability

    Here I stress‑test the printed armor to make sure it can handle real handling and posing, not just sit on a shelf. I evaluate layer adhesion, flex points, and weak areas, then refine settings or geometry until the final Master Chief can survive regular use without cracking or deforming.

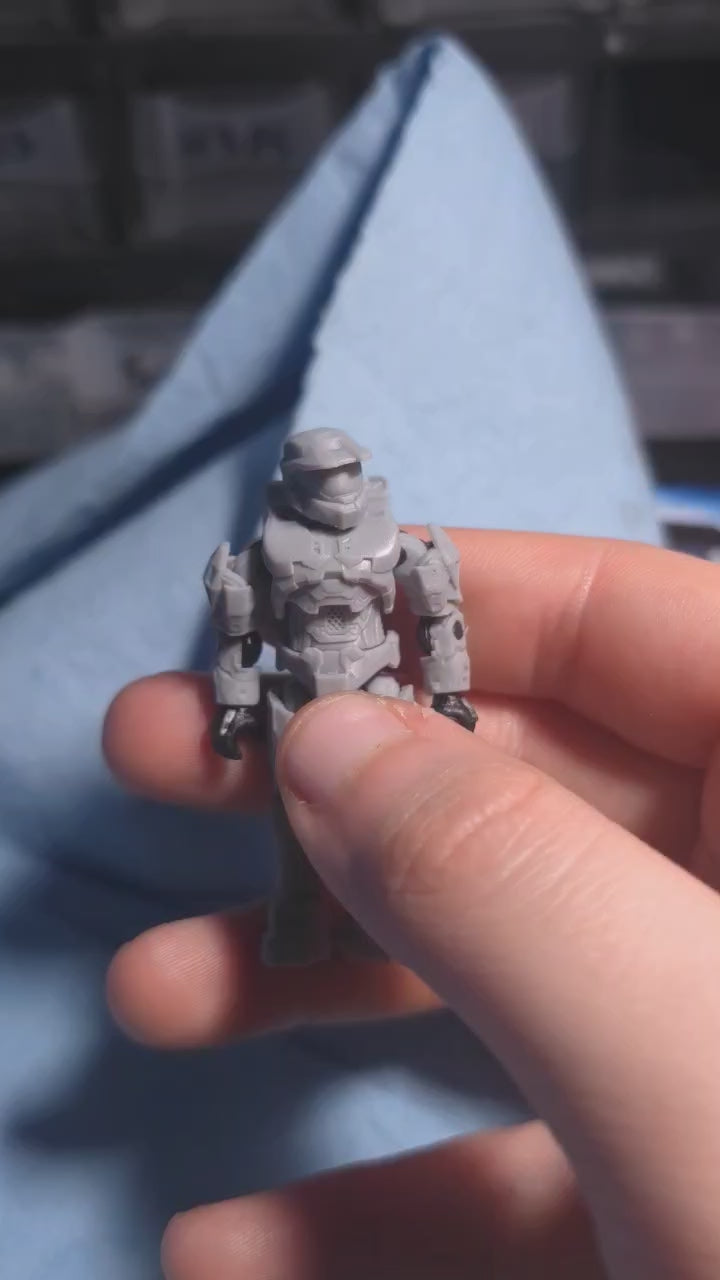

Step 1: Details & Support

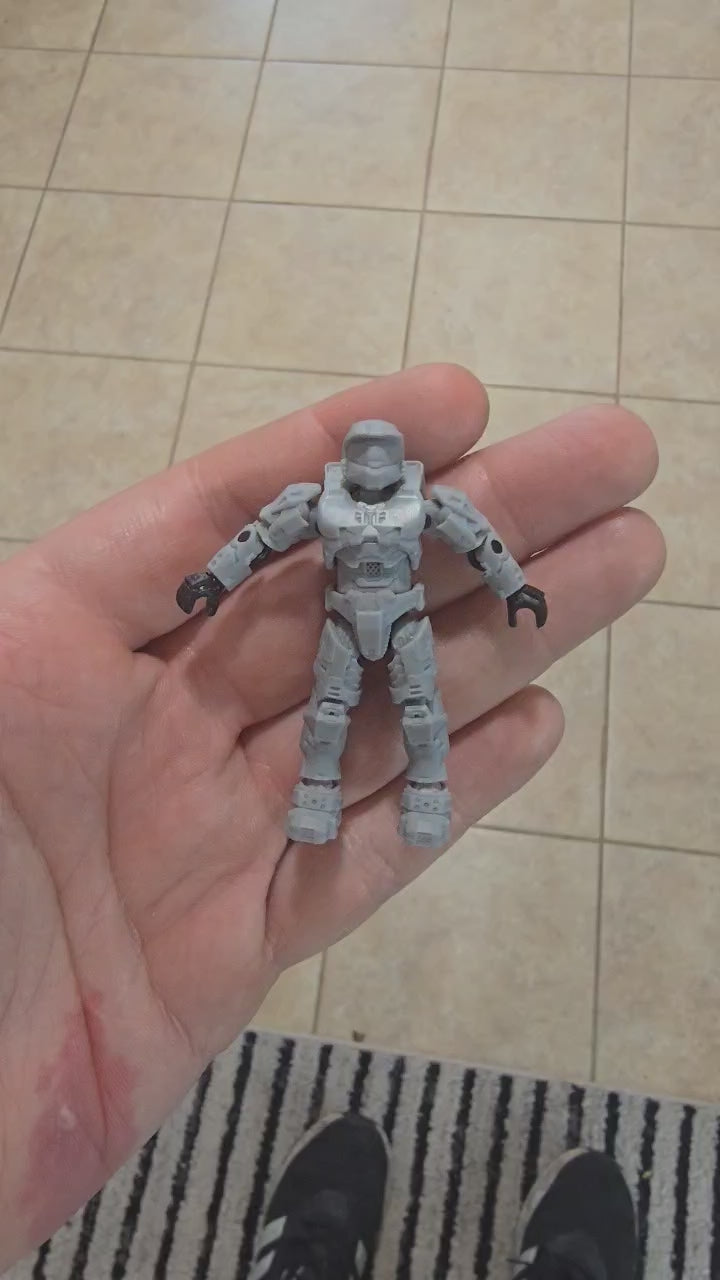

Step 2: Assembly and Tolerance

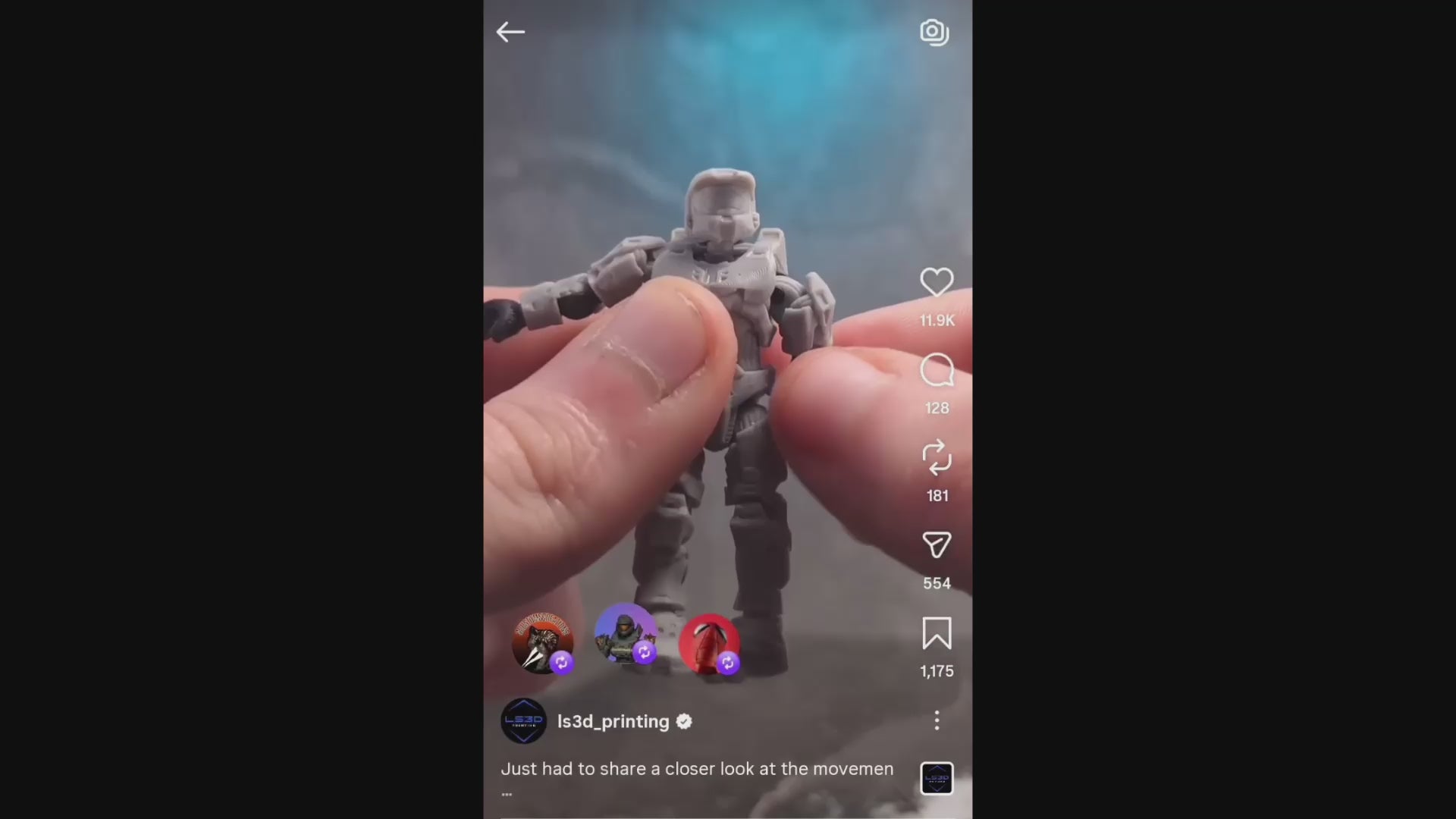

Step 3: Durability
